ControlNet SDXL Diffusers Canny

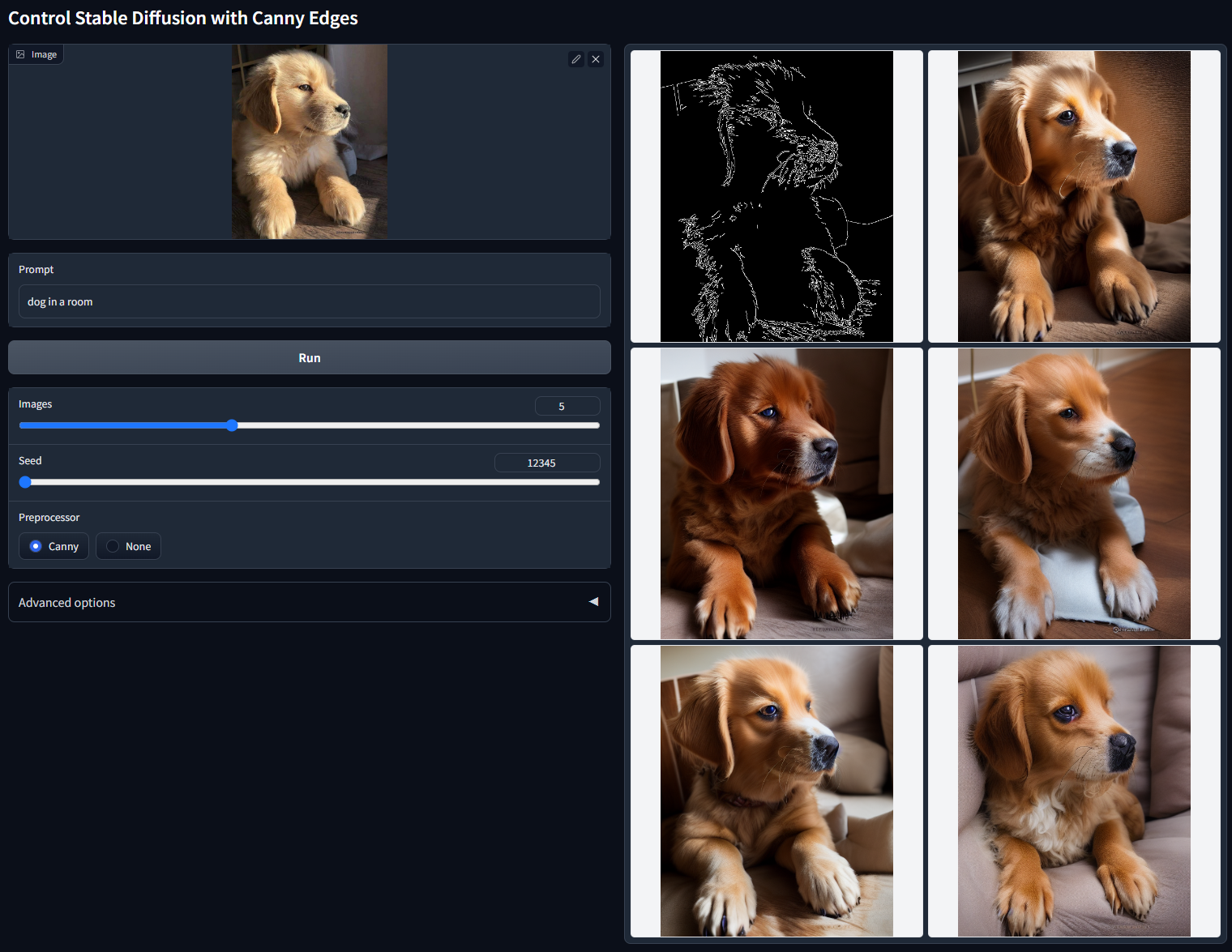

ControlNet SDXL Diffusers Canny is an edge detection model within the ControlNet framework designed specifically for Stable Diffusion XL (SDXL) image generation. The model processes input images to create "detectmaps" - simplified representations highlighting areas of high contrast through sharp lines. These detectmaps then guide SDXL's generation process, allowing it to maintain the structural composition of input images while enabling creative variations through text prompts.

The model builds upon the architecture established in the original ControlNet research paper, which introduced the concept of adding conditional control to text-to-image diffusion models. Version 1.1 maintains architectural stability (planned through version 1.5) while delivering improved robustness and image quality compared to its predecessor.

Training and Development

The model underwent significant training optimization in version 1.1, utilizing 8 Nvidia A100 80G GPUs over a 3-day period with a batch size of 256, representing a substantial investment of 2160 USD. The training data incorporated various edge maps generated with randomized Canny edge detection thresholds, addressing previous issues such as duplicate images and low-quality data present in version 1.0.

A notable innovation in the model family is the Control-LoRA variant, which applies low-rank adaptation to achieve significant size reduction. While a standard ControlNet model might be 4.7GB, a rank 256 Control-LoRA reduces this to approximately 738MB, with rank 128 versions further reducing size to around 377MB. This efficiency makes the model more accessible for consumer-grade GPUs.

Features and Capabilities

The model's primary strength lies in its ability to precisely guide image generation through edge detection while maintaining flexibility in artistic interpretation. A key feature is its intelligent resampling algorithm, which ensures pixel-perfect accuracy of control images regardless of output resolution - particularly valuable when working with pre-processed or manually created edge maps.

Within the broader ControlNet family, Canny exists alongside several specialized variants:

• OpenPose for pose replication
• HED/SoftEdge for smooth line detection
• MLSD for straight line detection
• Depth for depth map-based manipulation
• Style for style transfer

Implementation and Usage

The model is primarily implemented through the sd-webui-controlnet extension for Automatic1111's Stable Diffusion WebUI. For optimal performance, users with 8GB-16GB VRAM should use the --medvram-sdxl command-line flag, while those with less than 8GB should opt for --lowvram.

The interface offers a "Control Mode" setting with three options:

• "Balanced"
• "My prompt is more important"
• "ControlNet is more important"

These settings help users fine-tune the balance between text prompts and control images, particularly useful when addressing "flat" results.

References and Resources

• ControlNet Research Paper - Original research establishing the ControlNet framework
• ControlNet Github Repository - Main repository for ControlNet implementation
• Automatic1111 ControlNet Extension - Primary implementation interface
• Civitai ControlNet Models - Collection of SDXL ControlNet models
• HuggingFace Control Collection - Model download repository
• ComfyUI Repository - Alternative interface for model implementation

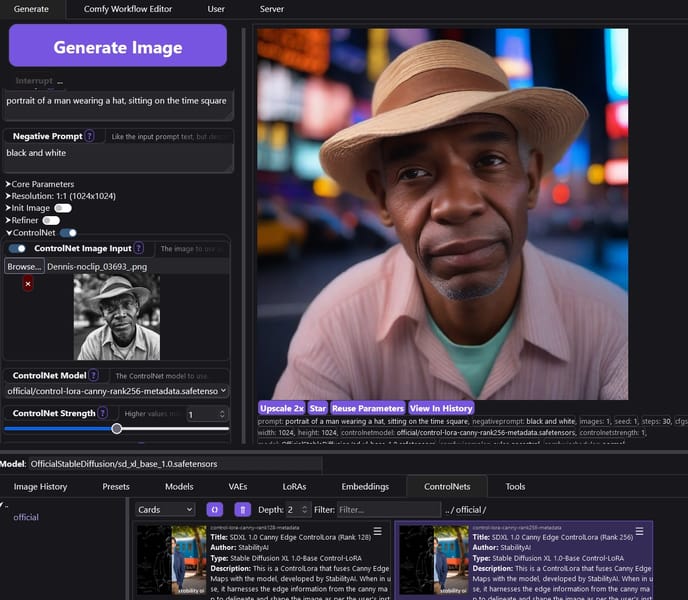

• StableSwarmUI - Additional implementation interface
• Stability AI Custom Nodes - Extended functionality for ComfyUI
