ControlNet SD 1.5 MLSD is a specialized variant of the ControlNet neural network architecture designed to work with Stable Diffusion 1.5. This model focuses specifically on Mobile Line Segment Detection (MLSD), enabling precise control over straight line features in image generation. The model is part of the broader ControlNet project, which adds conditional control to text-to-image diffusion models.
Architecture and Technology

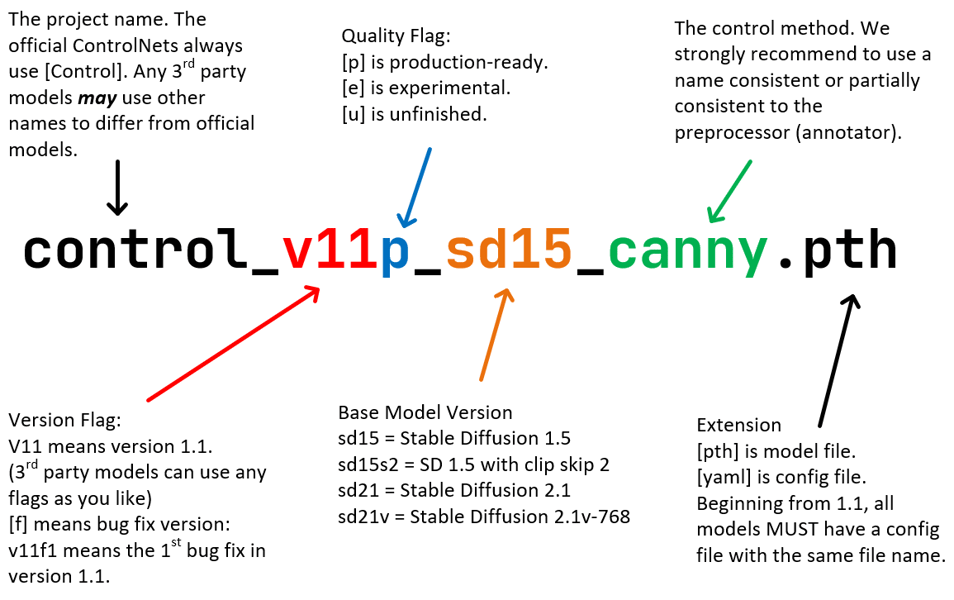

The model's architecture follows the ControlNet 1.1 framework, which is an improvement over ControlNet 1.0, offering enhanced robustness and result quality. It works by taking an additional input image (the "control" image) and using it to guide the generation process. For the MLSD variant specifically, the model processes straight lines detected in the input image to guide the final image generation. This is achieved through a preprocessor (annotator) that converts input images into detectmaps, which are then fed into the ControlNet model.
The implementation includes smart resampling algorithms that ensure pixel-perfect control image scaling regardless of input resolution. This feature is particularly valuable when working with manually created control images or when maintaining consistency across different resolutions is crucial, as discussed in the sd-webui-controlnet repository.
Features and Capabilities
The MLSD variant excels at identifying and extracting straight lines from input images, making it particularly effective for generating images of architectural structures and man-made objects with prominent linear features. This specialization distinguishes it from other variants in the ControlNet family, such as:
- Canny: Focuses on general edge detection
- HED/SoftEdge: Specializes in smooth edge detection
- Scribble/Sketch: Handles sketch-to-image conversion
- OpenPose: Manages pose estimation
- Seg: Handles semantic segmentation
- Depth: Works with depth maps
- Normal Map: Processes surface normal information

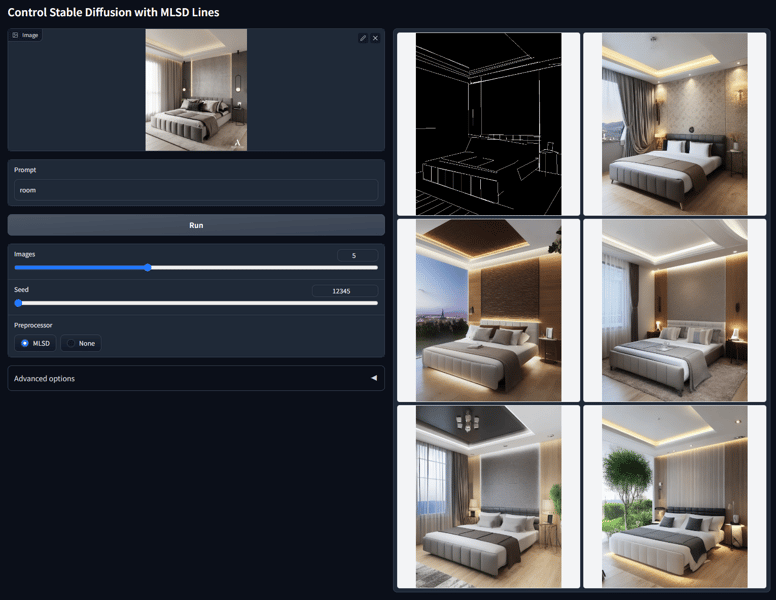

The model can be used within the Automatic1111 Stable Diffusion web UI via a plugin, allowing for complex image manipulations by combining multiple ControlNets and other techniques like LoRAs.
Technical Implementation and Usage
For optimal performance, several parameter configurations are recommended:
- For systems with 8GB-16GB VRAM: Use "--medvram-sdxl" setting
- For systems with less than 8GB VRAM: Use "--lowvram" setting
- Control modes available: "Balanced," "My prompt is more important," "ControlNet is more important"
The model supports various control modes to balance between following the input prompt and the control image. Users working with 8GB GPUs should set save_memory = True in config.py for optimal performance.
The model was included in the sd-webui-controlnet 1.1.400 update released on September 4th, 2023, designed for webui versions 1.6.0 and later. It incorporates data augmentation techniques, such as random left-right flipping, to improve generalization capabilities.
