Stable Fast 3D (SF3D) represents a significant advancement in AI-powered 3D reconstruction technology, building upon the foundation established by the TripoSR model while introducing substantial architectural improvements. This transformer-based model, developed by Stability AI, specializes in generating textured, UV-unwrapped 3D mesh assets from single input images with remarkable speed and efficiency.
Technical Architecture and Capabilities

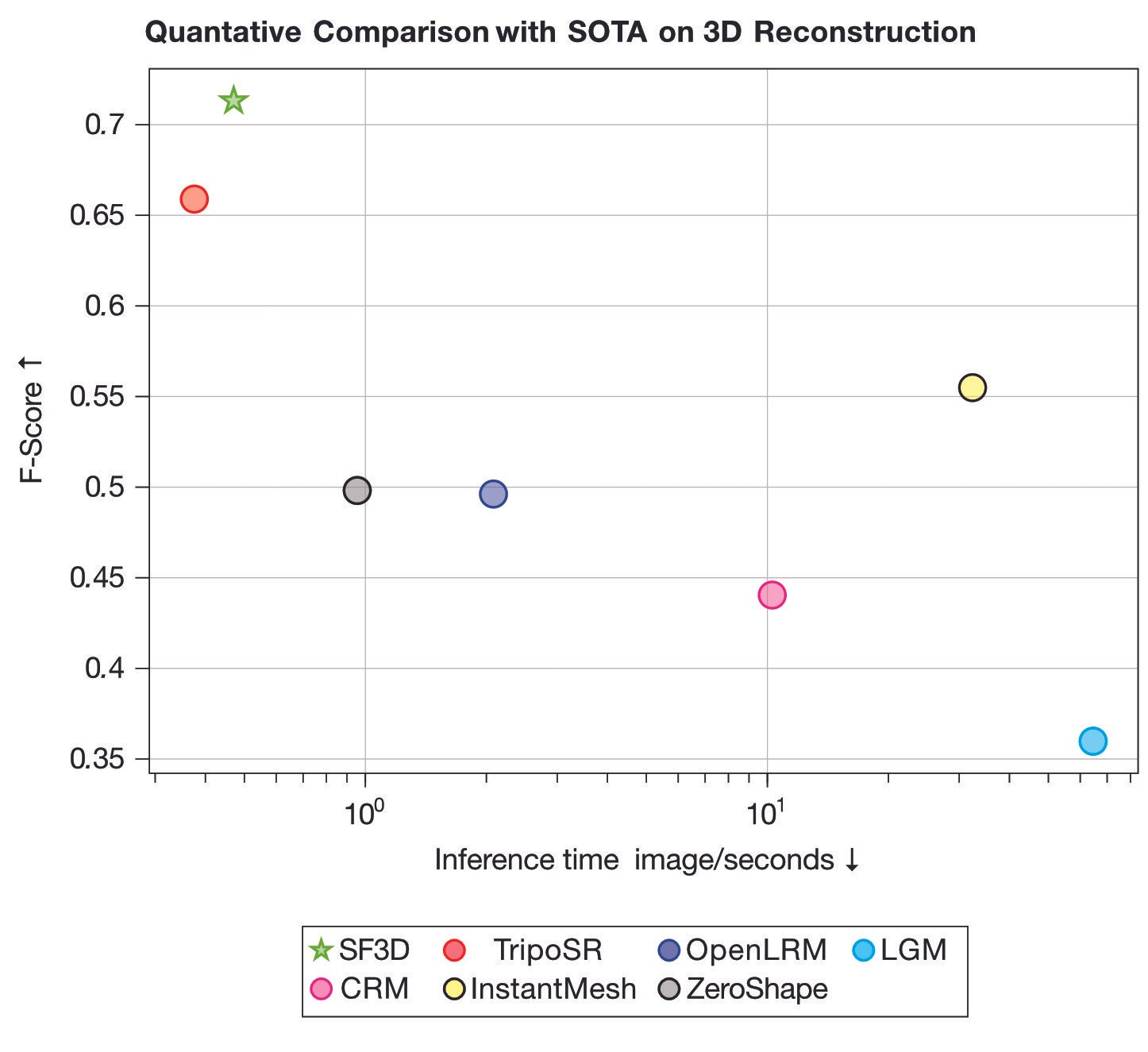

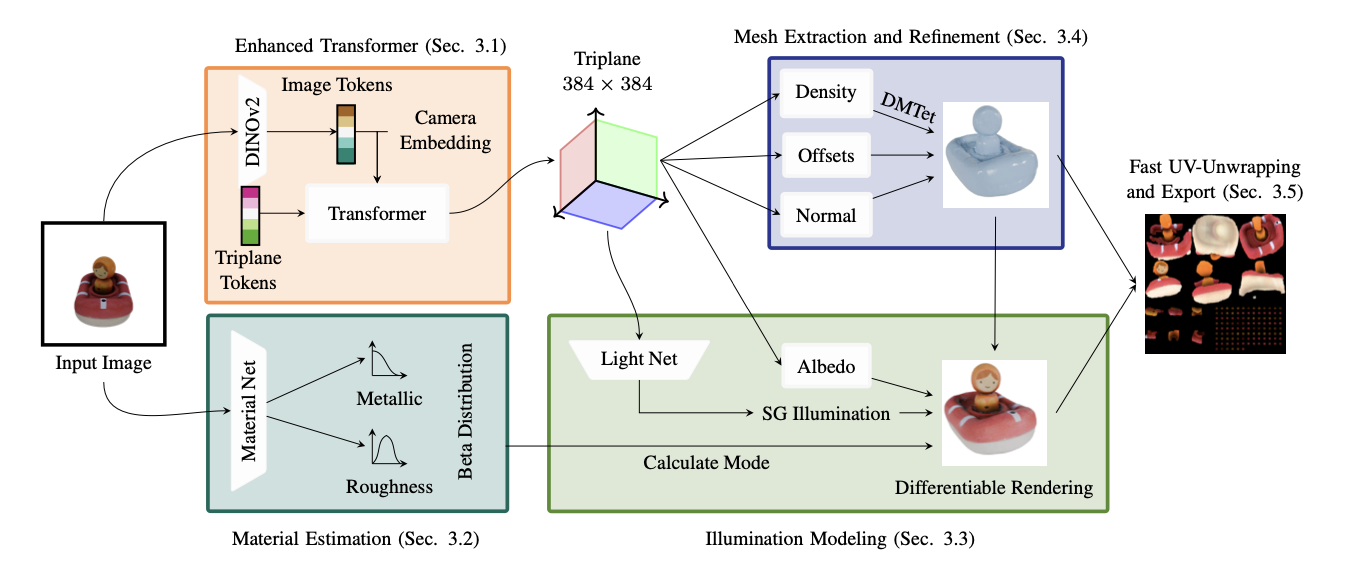

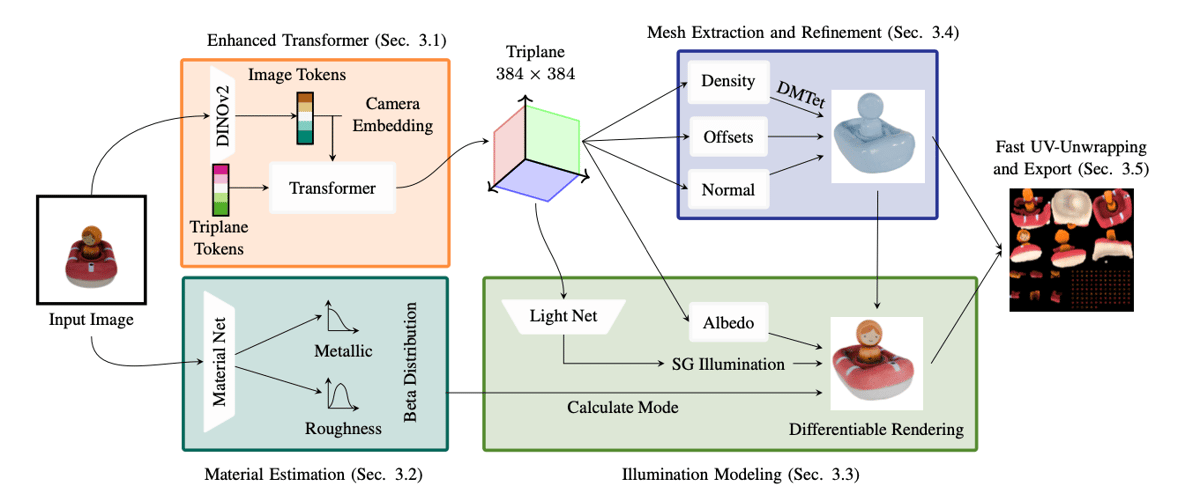

The model employs a feedforward architecture optimized for rapid inference, capable of generating 3D assets in approximately 0.5 seconds on a GPU with 7GB VRAM. This represents a dramatic improvement over previous approaches like SV3D, which required around 10 minutes for similar tasks. SF3D processes 512x512 pixel input images to produce low-polygon meshes complete with material parameters (roughness, metallic) for enhanced rendering quality.
Key features include:
- Automatic UV unwrapping
- Material parameter prediction
- Texture generation with reduced illumination bake-in
- Optional quad or triangle remeshing
- Support for multiple backends (CUDA, MPS for Mac Silicon, CPU)
Training and Development
SF3D was trained using a curated subset of the Objaverse dataset, employing enhanced rendering methods to better approximate real-world image distributions and improve generalization. The training process incorporated novel techniques for fast textured mesh creation, as detailed in the accompanying technical report.
Applications and Usage
The model excels in various applications, including:
- Rapid prototyping for 3D work
- Game and virtual reality asset development
- Educational and creative tools
- Architectural and design visualization
- Research on 3D reconstruction models
SF3D is particularly well-suited for generating static assets such as background objects, furniture, and environmental elements. The model explicitly excludes generating factual representations of people or events from its intended use cases.
Licensing and Availability
SF3D is released under the Stability AI Community License, which allows for:
- Free use in research
- Non-commercial applications
- Commercial use by entities with annual revenue under $1 million
The model's source code is available on GitHub, with model weights and documentation hosted on Hugging Face.
